Shaftcom
An optical shaft measuring system that can be installed in production sites to achieve high-speed, high-precision measurements. Shaftcom evaluates the dimensional and geometric tolerance of shaft-shaped workpieces at high-speed using a non-contact method.
Shaftcom
Achieving High speed and high accuracy measurement.
Optical shaft measuring system that can be automated on the shop floor.
Measurement solutions provided by "OPTICLINE" from JENOPTIK Industrial Metrology Germany GmbH ("JENOPTIK") offer a wide range of evaluation options and many application areas concerning the measurement of shaft-shaped workpieces. Innovative and pioneering, this shaft measurement system has impressed a wide range of users around the world for over 25 years.
Now, JENOPTIK and ACCRETECH have partnered on the sales and maintenance services of the OPTICLINE shaft measuring system in Japan, adding it to ACCRETECH's product lineup to be sold under the Shaftcom brand name.
JENOPTIK and ACCRETECH are global specialists in optimizing manufacturing processes and precision measurement. With years of experience and knowhow in the fields of industrial measurement technology, optical measurement, and flexible robotic automation, we develop custom measurement solutions for customers in automotive, aerospace, healthcare and other manufacturing industries.
As an experienced and reliable partner in high-precision contact and non-contact measurement, we support our customers with our global sales and service network. Our measuring instruments can be used in a wide range of applications according to individual customer requirements, such as surface and contour inspection and dimensional measurement at every stage of the production process, including final inspection and in the measuring room. Our systems provide accurate measurement data in the shortest possible time.
Optical Shaft Measuring System Shaftcom C series
This optical shaft measuring machine offers high-speed and high-precision measurements that play an active role in production sites. High-speed measurements and high resolution are achieved with a line-scan camera and an 8000 pixel image sensor. Please experience for yourself the incredible measurement speed and accuracy enabled through optics. We also offer a model that equips a camera with a waterproof/dustproof standard rating of IP52 and an integrated computer. The design makes Shaftcom extremely robust and resistant to its surrounding environment.

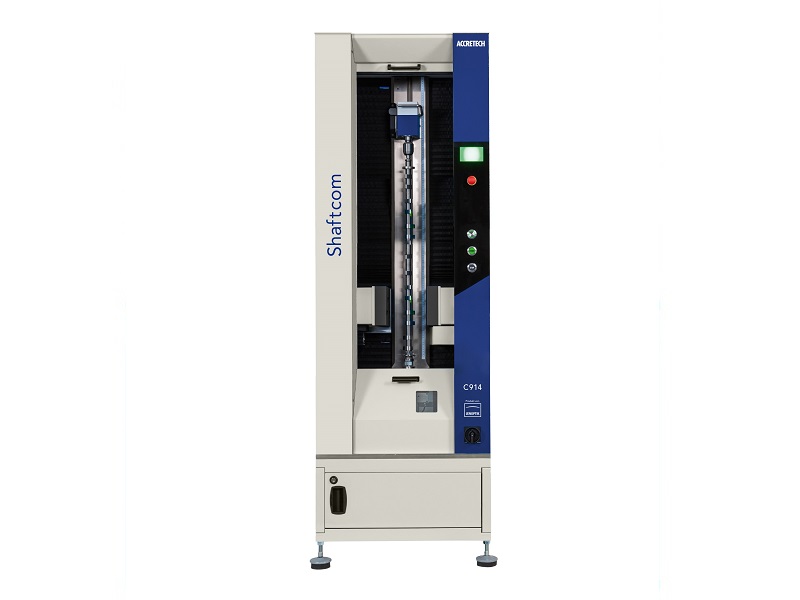

- Shaftcom C
A compact and robust system offering long-term gauge repeatability and reproducibility. The Shaftcom C Series shaft measurement system offers exceptional gauge repeatability and reproducibility of 1 μm or less. To meet customer requirements, the system allows custom combinations of various performance capability options such as a high-precision rotary axis and a multi-sensor system combined with contact type measurement. The C Series have the highest level of flexibility, accuracy and stability.
Advanced evaluation made possible with multi-sensor technology

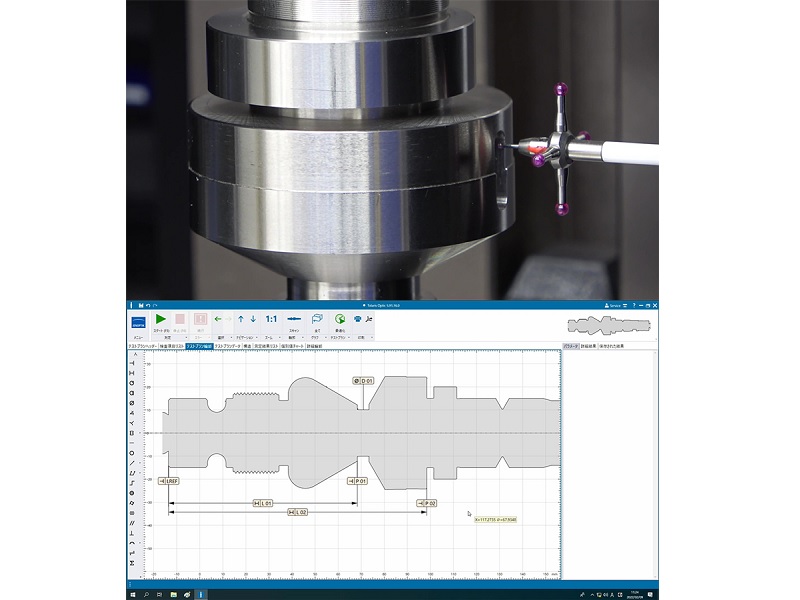

Shaftcom shaft measurement systems can optionally be equipped with a contact probe system. Contact measurement can be seamlessly integrated into optical measurement runs and is suitable for measuring axial run-out, as well as into keyways and holes. These additional items can also be evaluated in a single measurement run, providing greater measurement flexibility. Intuitive operating software allows you to easily program measurement runs simply by clicking on measurement tasks and locations.
